HEAWS-3R3N=P3
FIXED IND 3.3UH 5.3A 10 MOHM SMDManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More
3.3 µH Shielded Drum Core, Wirewound Inductor 5.3 A 10mOhm Max Nonstandard
Additional Information
Series: HEAWSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±30% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.421"" L x 0.409"" W (10.70mm x 10.40mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 10mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 8A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.394"" (10.00mm) |
| Inductance | 3.3 µH |
| Current Rating (Amps) | 5.3 A |
Request a Quote
Clients Also Buy

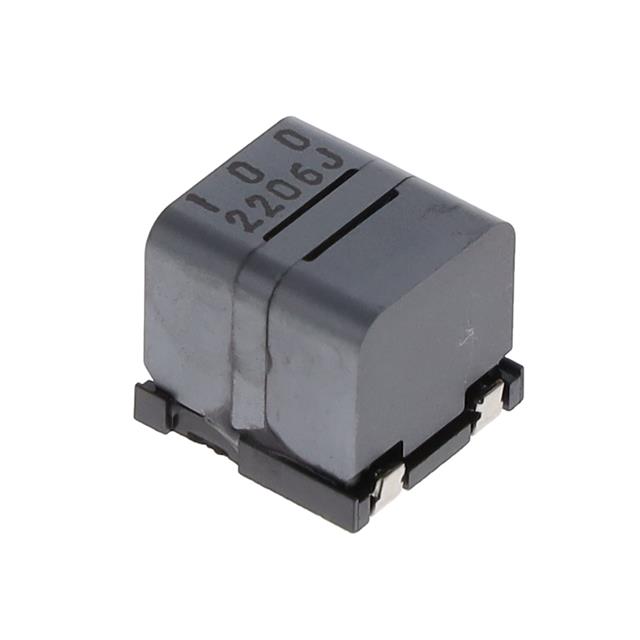

HEAWS-100M=P3
