#B953AS-181M=P3
FIXED IND 180UH 1.1A 290MOHM SMDManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More

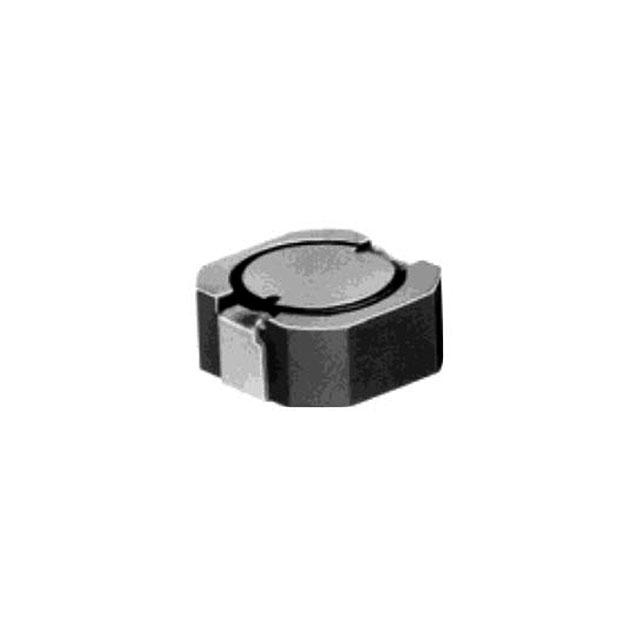

180 µH Shielded Drum Core, Wirewound Inductor 1.1 A 290mOhm Max Nonstandard
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.504"" L x 0.504"" W (12.80mm x 12.80mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 290mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 1.1A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.268"" (6.80mm) |
| Inductance | 180 µH |
| Current Rating (Amps) | 1.1 A |
Request a Quote
