BL02RN2R1M2B
FERRITE BEAD AXIAL RAD 1LNManufacturer: Murata Electronics
Categories: Ferrite Beads and Chips
Quality Control: Learn More

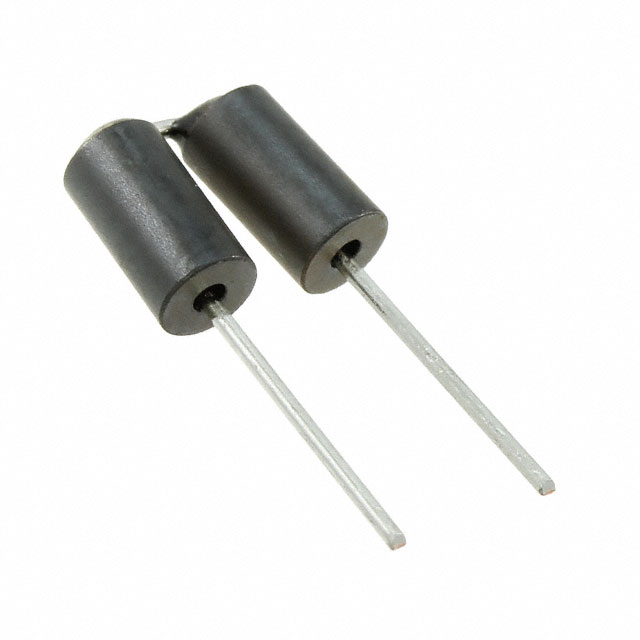

Murata Electronics EMIFIL®, BL02EN series BL02RN2R1M2B is a single-line ferrite bead component designed for effective noise suppression. This through-hole device features an axial, split radial bend package with a maximum current rating of 7A and a DC resistance of 20mOhm. Its compact axial dimensions of 0.134" (3.40mm) diameter and 0.295" (7.50mm) height make it suitable for applications where space is a consideration. The operating temperature range of -40°C to 85°C ensures reliable performance across various environmental conditions. This component is commonly utilized in automotive, industrial, and consumer electronics for EMI filtering and signal integrity improvement.
Additional Information
Series: EMIFIL®, BL02ENRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Axial, Split Radial Bend |
| Filter Type | - |
| Size / Dimension | 0.134"" Dia (3.40mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Height (Max) | 0.295"" (7.50mm) |
| Current Rating (Max) | 7A |
| DC Resistance (DCR) (Max) | 20mOhm |
| Number of Lines | 1 |
