LXDC55BAAC-158
CONVERTER DC/DC 3A 1.8V SMDManufacturer: Murata Electronics
Categories: DC DC Converters
Quality Control: Learn More
Murata Electronics LXDC55B Series non-isolated Point-of-Load (PoL) DC-DC converter, part number LXDC55BAAC-158. This compact SMD module provides a regulated 1.8V output at up to 3A from a 2.7V to 5.5V input range. Designed for efficient power delivery, it incorporates Over-Current Protection (OCP) and Under-Voltage Lockout (UVLO) features for robust operation. The LXDC55BAAC-158 is suitable for ITE (Commercial) applications and is packaged in a 14-SMD Module with dimensions of 5.0mm x 5.7mm x 2.1mm. It operates within a temperature range of -40°C to 85°C and is supplied in Cut Tape (CT).
Additional Information
Series: LXDC55BRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Features | OCP, UVLO |
| Packaging | Cut Tape (CT) |
| Package / Case | 14-SMD Module |
| Size / Dimension | 0.20"" L x 0.22"" W x 0.08"" H (5.0mm x 5.7mm x 2.1mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Efficiency | - |
| Current - Output (Max) | 3A |
| Supplier Device Package | - |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output 1 | 1.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
Request a Quote
Clients Also Buy

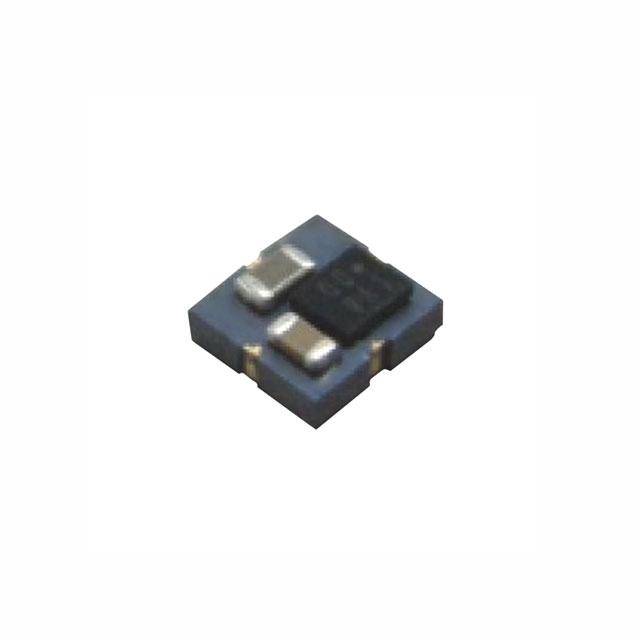

LXDC2XQ15A-277
