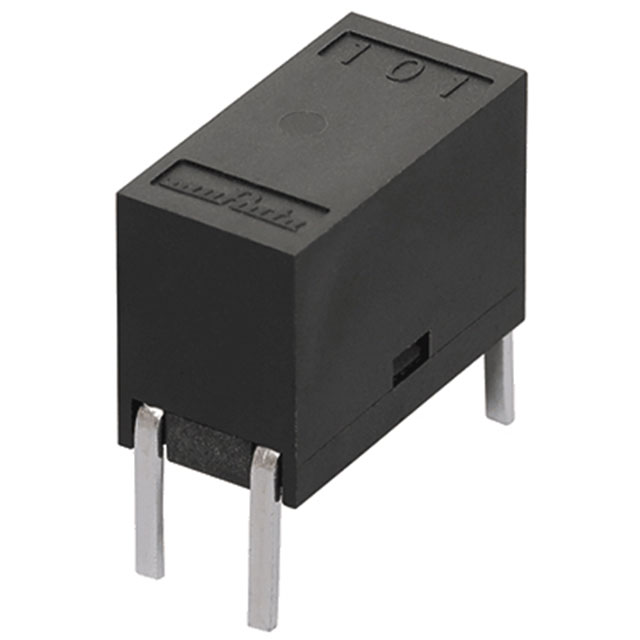

PLT10HN450180P0B
CMC 18A 2LN 45 OHM THManufacturer: Murata Electronics
Categories: Common Mode Chokes
Quality Control: Learn More
2 Line Common Mode Choke Through Hole 45 Ohms @ 100 MHz 18A DCR 1.8mOhm
Additional Information
Series: PLT10HNRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Filter Type | Power Line |
| Size / Dimension | 0.508"" L x 0.260"" W (12.90mm x 6.60mm) |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature | -55°C ~ 125°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.366"" (9.30mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 300V |
| Current Rating (Max) | 18A |
| DC Resistance (DCR) (Max) | 1.8mOhm |
| Impedance @ Frequency | 45 Ohms @ 100 MHz |
