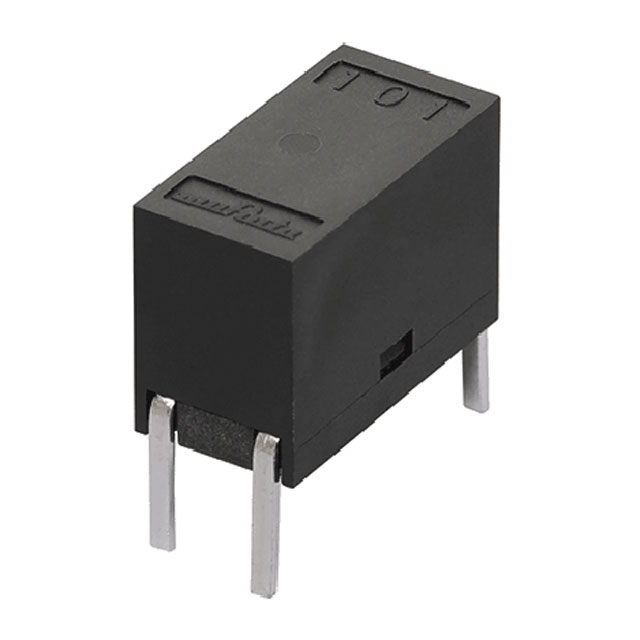

PLT10HN401100P0B
CMC 10A 2LN 400 OHM THManufacturer: Murata Electronics
Categories: Common Mode Chokes
Quality Control: Learn More
2 Line Common Mode Choke Through Hole 400 Ohms @ 10 MHz 10A DCR 4.1mOhm
Additional Information
Series: PLT10HRoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Vertical, 4 PC Pad |
| Filter Type | Power Line |
| Size / Dimension | 0.508"" L x 0.260"" W (12.90mm x 6.60mm) |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature | -55°C ~ 125°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.366"" (9.30mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Current Rating (Max) | 10A |
| DC Resistance (DCR) (Max) | 4.1mOhm |
| Impedance @ Frequency | 400 Ohms @ 10 MHz |
