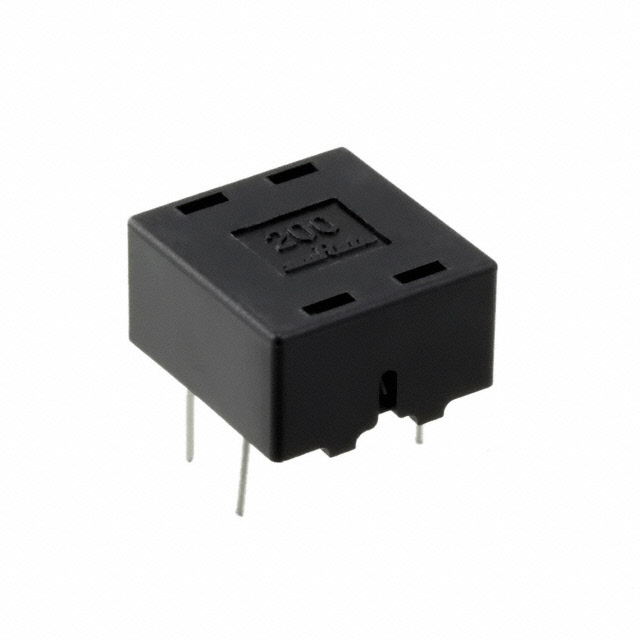

PLT09HN2003R0P1B
CMC 3A 2LN THManufacturer: Murata Electronics
Categories: Common Mode Chokes
Quality Control: Learn More
2 Line Common Mode Choke Through Hole 3A DCR 30mOhm
Additional Information
Series: PLT09RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Horizontal, 4 PC Pin |
| Filter Type | Power Line |
| Size / Dimension | 0.551"" L x 0.512"" W (14.00mm x 13.00mm) |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.315"" (8.00mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) (Max) | 30mOhm |
