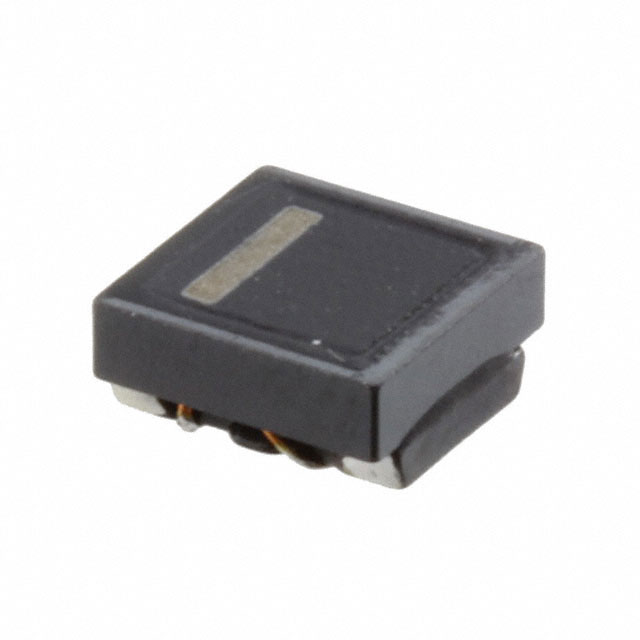

DLW5BTN102SQ2L
CHOKE COMMON MODE 1000 OHM 2020Manufacturer: Murata Electronics
Categories: Common Mode Chokes
Quality Control: Learn More
Murata Electronics DLW5B Series common mode choke, part number DLW5BTN102SQ2L, offers 1 kOhms impedance at 100 MHz for 2-line applications. This surface mount component features a 2A current rating and a typical DC resistance of 24 mOhms. Designed for robust performance, it operates across a temperature range of -40°C to 85°C. Its 5.00mm x 5.00mm footprint with a maximum height of 2.50mm makes it suitable for compact designs. The DLW5BTN102SQ2L is commonly utilized in power and signal line filtering for automotive and industrial electronic systems. Packaging is provided in Cut Tape (CT).
Additional Information
Series: DLW5BRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | Horizontal, 4 J-Lead |
| Filter Type | Power, Signal Line |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.098"" (2.50mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 2A |
| DC Resistance (DCR) (Max) | 24mOhm (Typ) |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
