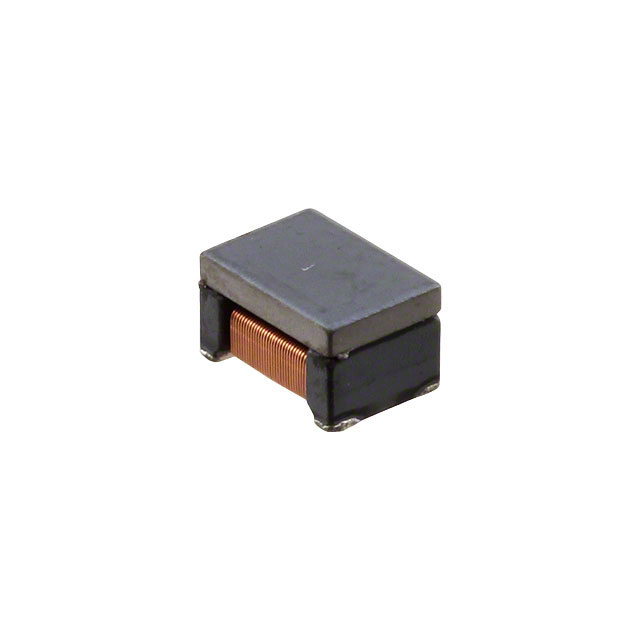

DLW43MH201XK2L
CMC 200UH 110MA 2LN SMD AEC-Q200Manufacturer: Murata Electronics
Categories: Common Mode Chokes
Quality Control: Learn More
200 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 110mA DCR 4.5Ohm
Additional Information
Series: DLW43RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Horizontal, 4 PC Pad |
| Filter Type | Signal Line |
| Size / Dimension | 0.177"" L x 0.126"" W (4.50mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 105°C |
| Approval Agency | - |
| Ratings | AEC-Q200 |
| Height (Max) | 0.114"" (2.90mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 20V |
| Current Rating (Max) | 110mA |
| DC Resistance (DCR) (Max) | 4.5Ohm |
| Inductance @ Frequency | 200 µH @ 100 kHz |
Request a Quote
Clients Also Buy

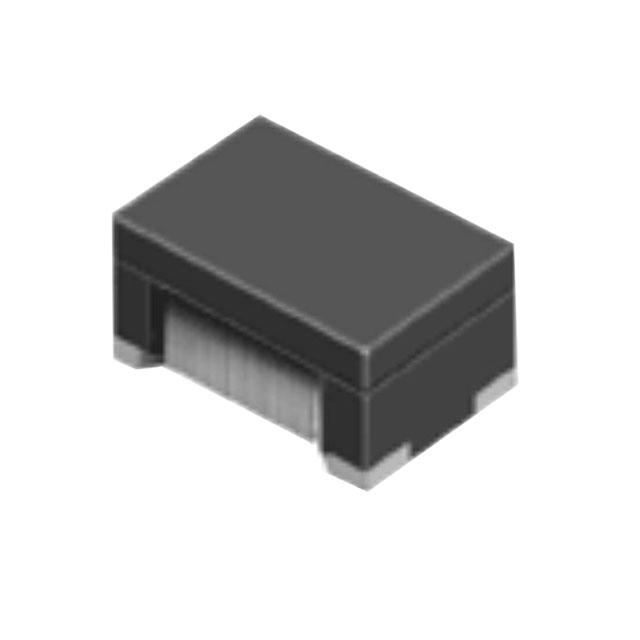

DLW43SH220XK2L
