DLW32SH101XF2L
CMC 100UH 115MA 2LN SMD AEC-Q200Manufacturer: Murata Electronics
Categories: Common Mode Chokes
Quality Control: Learn More
100 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 115mA DCR 2.1Ohm
Additional Information
Series: DLW32RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Horizontal, 4 PC Pad |
| Filter Type | - |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Approval Agency | - |
| Ratings | AEC-Q200 |
| Height (Max) | 0.098"" (2.50mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 115mA |
| DC Resistance (DCR) (Max) | 2.1Ohm |
| Inductance @ Frequency | 100 µH @ 100 kHz |
Request a Quote
Clients Also Buy

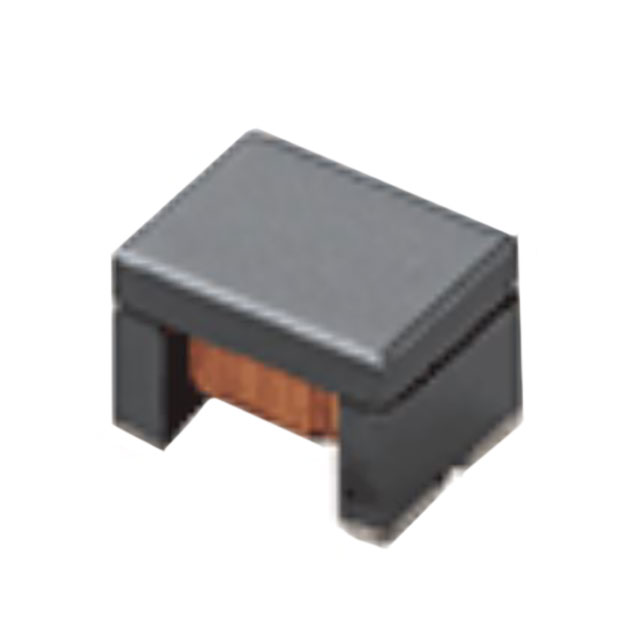

DLW32SH220XK2L
