CFUKG455KG1A-R0
FILTERManufacturer: Murata Electronics
Categories: Ceramic Filters
Quality Control: Learn More
Murata Electronics CFUKG series 455kHz ceramic filter, part number CFUKG455KG1A-R0. This surface mount component offers a bandwidth of 4.5 kHz and a nominal impedance of 1.5 kOhm. Featuring a compact chip package with 3 PC pads, it measures 7.50mm in length and 6.00mm in width, with a maximum height of 4.00mm. The filter exhibits an insertion loss of 6dB. Commonly employed in telecommunications and consumer electronics applications requiring precise signal filtering at the 455kHz frequency. Packaged in Tape & Reel (TR) for automated assembly.
Additional Information
Series: CFUKGRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Chip, 3 PC Pads |
| Filter Type | - |
| Size / Dimension | 0.295"" L x 0.236"" W (7.50mm x 6.00mm) |
| Impedance | 1.5kOhm |
| Mounting Type | Surface Mount |
| Frequency | 455kHz |
| Insertion Loss | 6dB |
| Height (Max) | 0.157"" (4.00mm) |
| Bandwidth | 4.5 kHz |
Request a Quote
Clients Also Buy

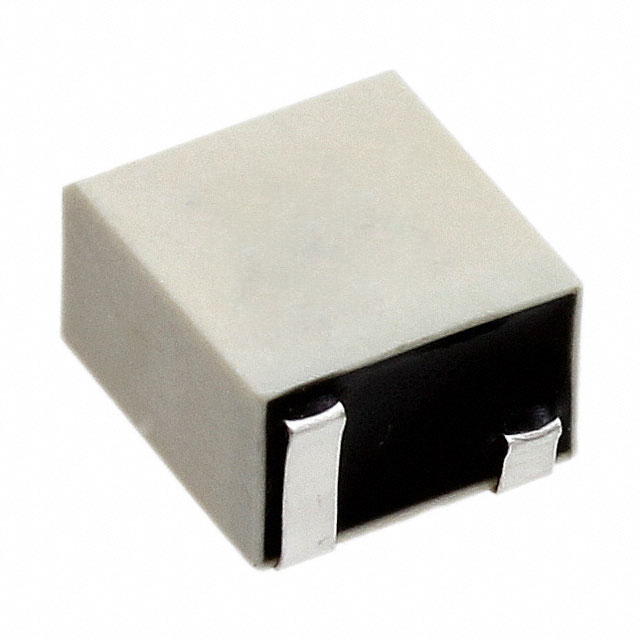

CFUKG455KF4X-R0
