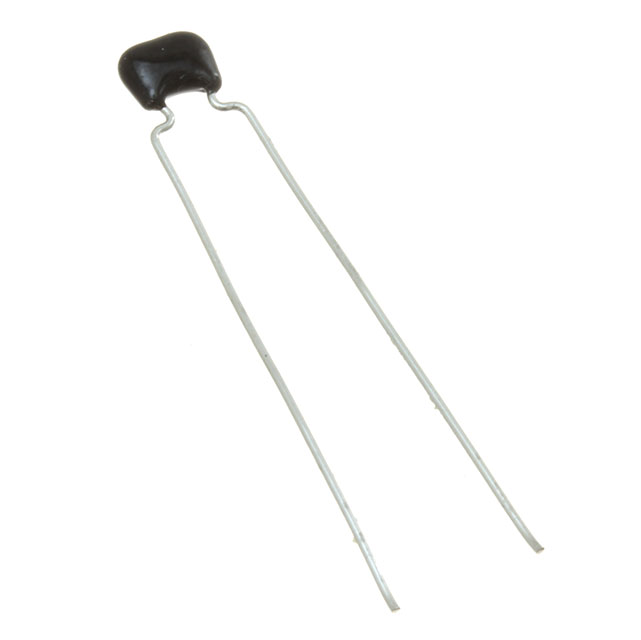

RHS7J2H472J2M2H01A

CAP CER 4700PF 500V UNJ RADIAL

Manufacturer: Murata Electronics

Categories: Ceramic Capacitors

Quality Control: Learn More

Murata Electronics RHS series ceramic capacitor, part number RHS7J2H472J2M2H01A. This radial ceramic capacitor offers a capacitance of 4700 pF with a tight tolerance of ±5% and a high voltage rating of 500V. Featuring the UNJ temperature coefficient and a lead spacing of 0.197" (5.00mm), its robust construction is evident from its 0.236" (6.00mm) maximum seated height and dimensions of 0.197" L x 0.124" W (5.00mm x 3.15mm). Designed for demanding environments, it operates across a wide temperature range of -55°C to 200°C and carries AEC-Q200 qualification, making it suitable for automotive applications. This component is supplied in cut tape packaging.

Additional Information

Series: RHSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: Last Time BuyPackaging: Cut Tape (CT)Datasheet:
Technical Details:
Tolerance±5%
Lead StyleFormed Leads - Kinked
Features-
PackagingCut Tape (CT)
Voltage - Rated500V
Package / CaseRadial
Temperature CoefficientUNJ
Size / Dimension0.197"" L x 0.124"" W (5.00mm x 3.15mm)
Mounting TypeThrough Hole
Operating Temperature-55°C ~ 200°C
ApplicationsAutomotive
Lead Spacing0.197"" (5.00mm)
RatingsAEC-Q200
Height - Seated (Max)0.236"" (6.00mm)
Thickness (Max)-
Failure Rate-
Capacitance4700 pF

Request a Quote

Name (required)

Phone (required)

Work Email (required)

Country (required)

Company Name (required)

CAPTCHA

By providing a telephone number and submitting the form, you are consenting to be contacted by SMS text message and agreeing to our Privacy Policy. Message frequency may vary. Message and data rates may apply. Reply STOP to opt out of further messaging. Reply HELP for more information.
Clients Also Buy
Capacitor FAQs

A capacitor is an electronic component that stores and releases electrical energy within an electric field.

A capacitor works by storing electrical charge between two conductive plates separated by a dielectric material. When needed, the stored energy is released back into the circuit.

Capacitors are used for:

  • Energy storage
  • Voltage regulation
  • Signal filtering
  • Timing circuits
  • Power conditioning
  • Signal coupling
