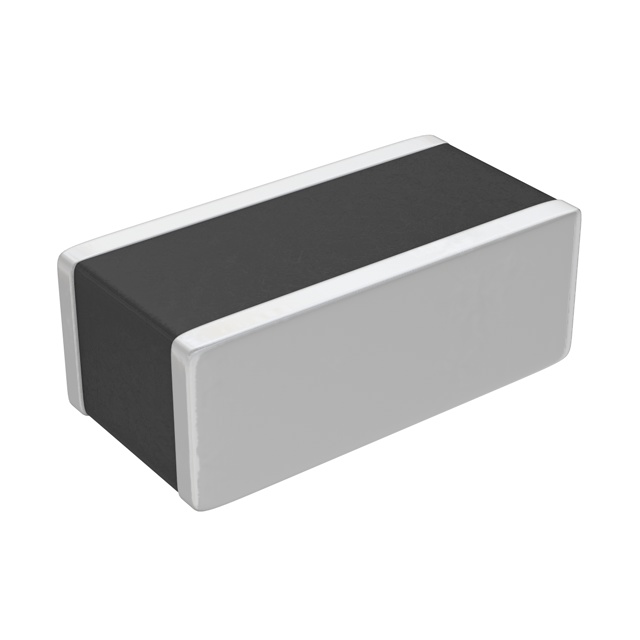

LLL185R71H222MA01L
CAP CER 2200PF 50V X7R 0306Manufacturer: Murata Electronics
Categories: Ceramic Capacitors
Quality Control: Learn More
Murata Electronics LLL series ceramic capacitor, part number LLL185R71H222MA01L, offers 2200 pF capacitance with a ±20% tolerance and a 50V rating. This MLCC features an X7R temperature coefficient, providing stability across a -55°C to 125°C operating range. The component is housed in a 0306 (0816 metric) package, measuring 0.031" L x 0.063" W (0.80mm x 1.60mm) with a maximum thickness of 0.024" (0.60mm). Designed for surface mount applications, its reverse geometry construction contributes to low ESL. This capacitor is suitable for bypass and decoupling functions in various electronic systems. It is supplied on tape and reel (TR).
Additional Information
Series: LLLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Lead Style | - |
| Features | Low ESL (Reverse Geometry) |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 50V |
| Package / Case | 0306 (0816 Metric) |
| Temperature Coefficient | X7R |
| Size / Dimension | 0.031"" L x 0.063"" W (0.80mm x 1.60mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Bypass, Decoupling |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.024"" (0.60mm) |
| Capacitance | 2200 pF |
