GA243QR7E2223MW01L

CAP CER 0.022UF 250VAC X7R 1812

Manufacturer: Murata Electronics

Categories: Ceramic Capacitors

Quality Control: Learn More

Murata Electronics GA2 series ceramic capacitor, part number GA243QR7E2223MW01L. This MLCC features a capacitance of 0.022 µF with a ±20% tolerance and a 250V rating. The X7R temperature coefficient ensures stable performance across an operating temperature range of -55°C to 125°C. The component is housed in an 1812 (4532 Metric) package with dimensions of 4.50mm x 3.20mm and a maximum thickness of 1.50mm. It is supplied on tape and reel. This capacitor is commonly utilized in Switch Mode Power Supplies (SMPS) for filtering applications.

Additional Information

Series: GA2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Tolerance±20%
Lead Style-
Features-
PackagingTape & Reel (TR)
Voltage - Rated250V
Package / Case1812 (4532 Metric)
Temperature CoefficientX7R
Size / Dimension0.177"" L x 0.126"" W (4.50mm x 3.20mm)
Mounting TypeSurface Mount, MLCC
Operating Temperature-55°C ~ 125°C
ApplicationsSMPS Filtering
Lead Spacing-
Ratings-
Height - Seated (Max)-
Thickness (Max)0.059"" (1.50mm)
Capacitance0.022 µF

Request a Quote

Name (required)

Phone (required)

Work Email (required)

Country (required)

Company Name (required)

CAPTCHA

Clients Also Buy
product image
RDER73A103K3M1H03A

CAP CER 10000PF 1KV X7R RADIAL

product image
RDER73A104K5B1H03B

CAP CER 0.1UF 1KV X7R RADIAL

product image

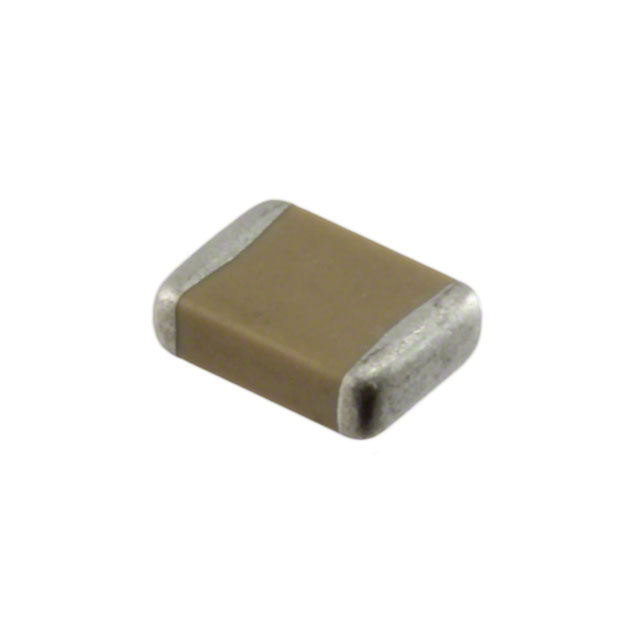

GA243DR7E2472MW01L
