SV03A103AEA01B00
POSITION SENSORManufacturer: Murata Electronics
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Resistive Sensor Rotary Position Hole for Shaft SMD (SMT) Tab
Additional Information
Series: SV03RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Output | Analog Voltage |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | - |
| Linearity | ±2% |
| Linear Range | - |
| Actuator Type | Hole for Shaft |
| Technology | Resistive |
| Resistance Tolerance | ±30% |
| For Measuring | Rotary Position |
| Supplier Device Package | 4-SMD |
| Rotation Angle - Electrical, Mechanical | 0° ~ 320°, (0° ~ 333.3°) |
| Output Signal | - |
| Resistance | 10 kOhms |
| Programmable | - |
Request a Quote
Clients Also Buy

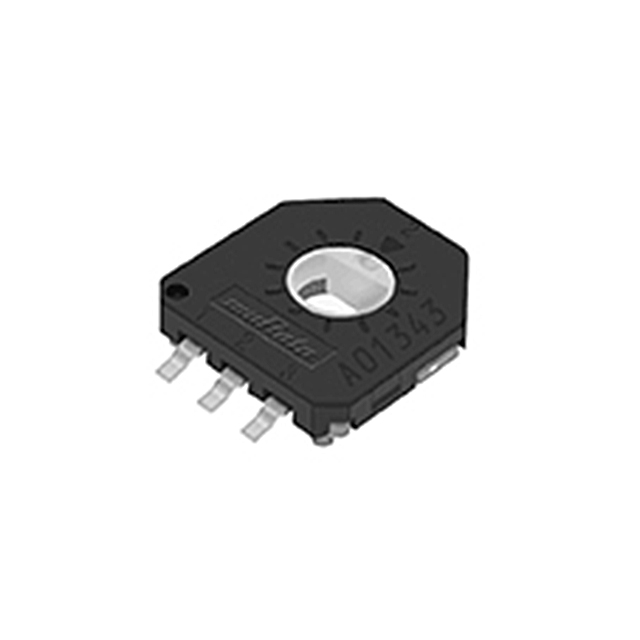

SV03A103AEA01R00
SENSOR ROTARY 320DEG SMD

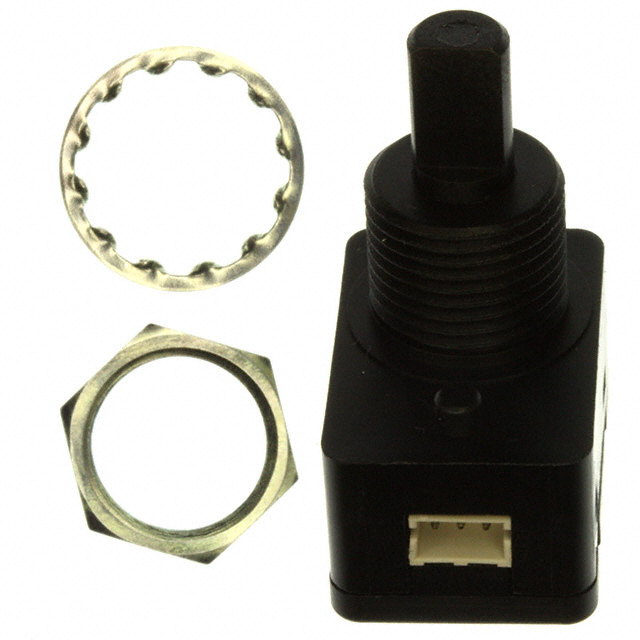

SV21C201BJA01B00
SENSOR ROTARY CONNECTOR

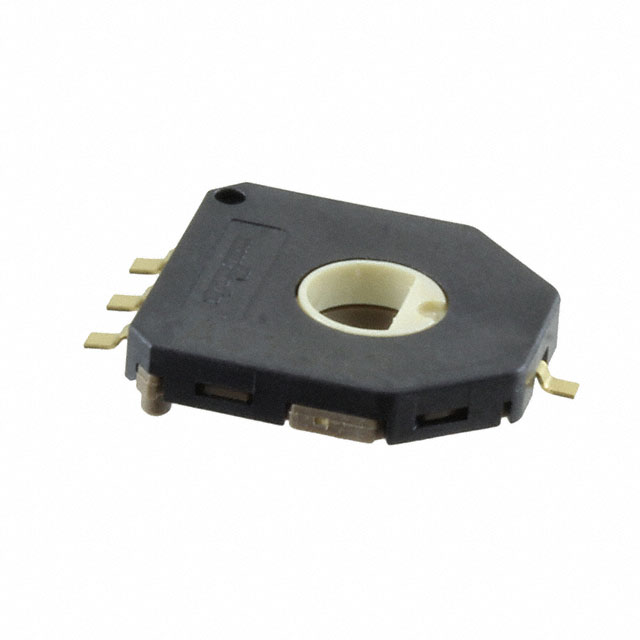

SV01A103AEA01R00
