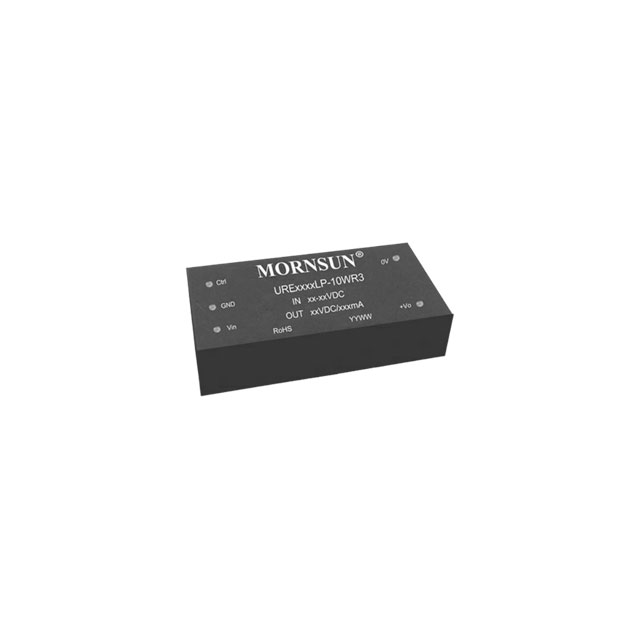

URE4815LP-10WR3
ISOLATED MODULE DC DC CONVERTERManufacturer: Mornsun America, LLC
Categories: DC DC Converters
Quality Control: Learn More
Isolated Module DC DC Converter 2 Output 15V -15V 333mA, 333mA 18V - 75V Input
Additional Information
Series: URE_LP-10WR3 (10W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.03"" L x 1.04"" W x 0.47"" H (51.5mm x 26.5mm x 12.0mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 75V |
| Approval Agency | CB, CE, UL |
| Efficiency | 87% |
| Current - Output (Max) | 333mA, 333mA |
| Supplier Device Package | - |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | - |
| Power (Watts) | 10 W |
| Number of Outputs | 2 |
| Voltage - Isolation | 3 kV |
| Standard Number | 60950-1; 62368-1 |
