MP5077GG-P
IC PWR SWITCH P-CHAN 1:1 12QFNManufacturer: Monolithic Power Systems Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 P-Channel 7A 12-QFN (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFQFN |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 10mOhm |
| Input Type | - |
| Voltage - Load | 0.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 7A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 12-QFN (2x2) |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
Request a Quote
Clients Also Buy

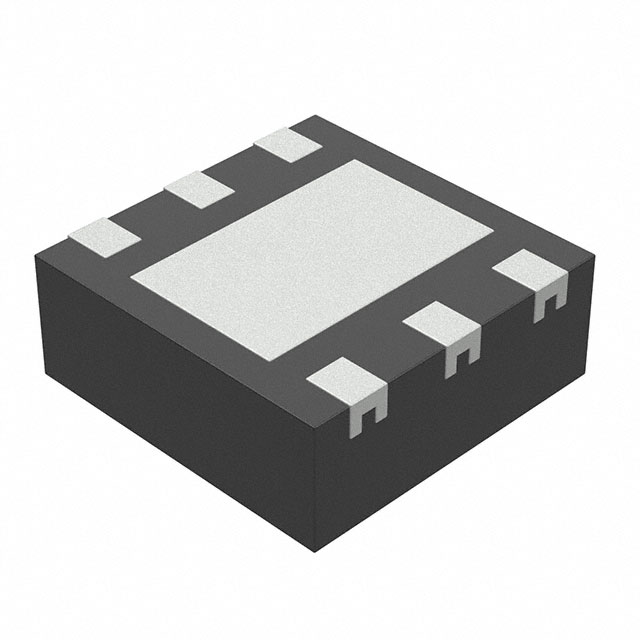

MP62551DGT-LF-Z
