MP6543HGL-A-Z
22V, 2A, THREE-PHASE POWER STAGEManufacturer: Monolithic Power Systems Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Multiphase Motor Driver NMOS PWM 24-QFN (3x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

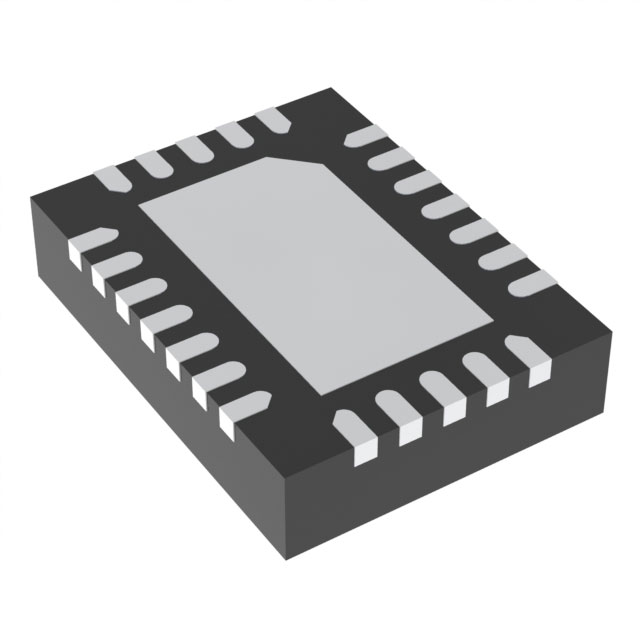

| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 3V ~ 22V |
| Applications | Brushless DC (BLDC) |
| Technology | NMOS |
| Voltage - Load | - |
| Supplier Device Package | 24-QFN (3x4) |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
Request a Quote
