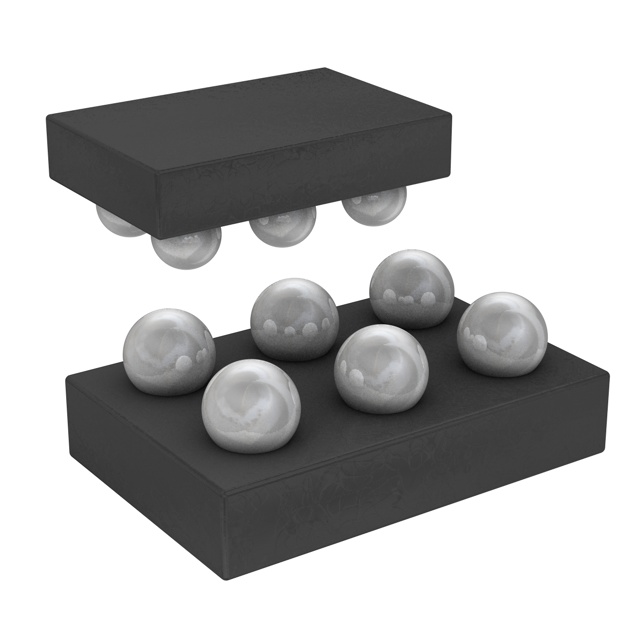

MP20249DC-MC-LF-Z
IC REG LINEAR 1.2V/2.8V 6WLCSPManufacturer: Monolithic Power Systems Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 2 Output 200mA, 200mA 6-WLCSP (1x1.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 200mA, 200mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 125 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 2 |
| Supplier Device Package | 6-WLCSP (1x1.5) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V, 2.8V |
| Control Features | Enable |
| PSRR | 65dB ~ 55dB (1kHz ~ 100kHz) |
| Voltage Dropout (Max) | 0.075V @ 200mA (Typ), 0.075V @ 200mA (Typ) |
| Protection Features | Over Current, Over Temperature |
