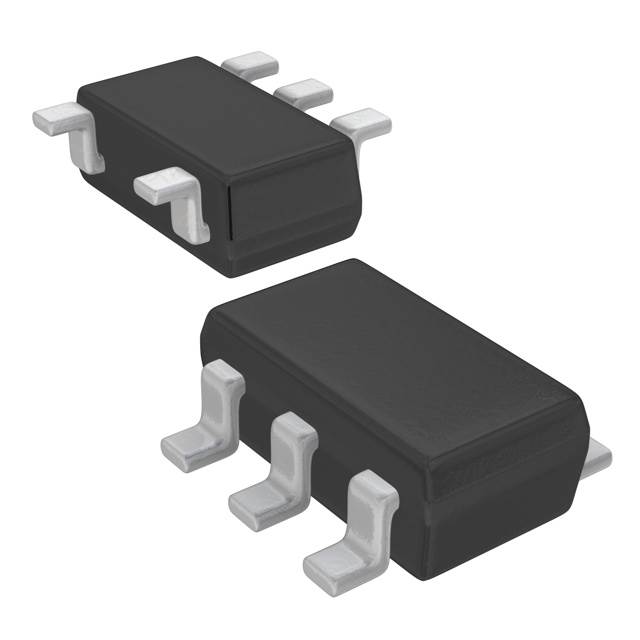

MP2009EE-1.8-LF-P
IC REG LINEAR 1.8V 120MA SC70-5Manufacturer: Monolithic Power Systems Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 120mA SC-70-5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 120mA |
| Operating Temperature | -20°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 90 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | SC-70-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Control Features | Enable |
| PSRR | 78dB ~ 55dB (1kHz ~ 100kHz) |
| Voltage Dropout (Max) | 0.172V @ 120mA (Typ) |
| Protection Features | Over Current, Over Temperature |
