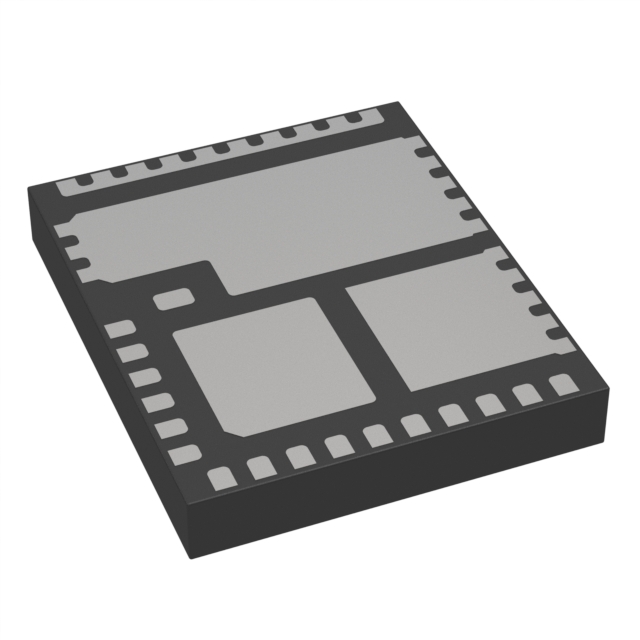

MP86956GMJT-Z

IC HALF BRIDGE DRIVER 70A 41TLGA

Manufacturer: Monolithic Power Systems Inc.

Categories: Full Half-Bridge (H Bridge) Drivers

Quality Control: Learn More

Half Bridge Driver Buck Converters NMOS 41-TLGA (5x6)

Additional Information

Series: Intelli-Phase™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:
Download Free CAD Model:Link image
Technical Details:
FeaturesBootstrap Circuit, Diode Emulation, Status Flag
PackagingTape & Reel (TR)
Package / Case41-PowerVFLGA
Mounting TypeSurface Mount
InterfacePWM
Operating Temperature-40°C ~ 125°C (TJ)
Output ConfigurationHalf Bridge
Voltage - Supply3V ~ 3.6V
Rds On (Typ)-
ApplicationsBuck Converters
Current - Output / Channel70A
Current - Peak Output125A
TechnologyNMOS
Voltage - Load3V ~ 16V
Supplier Device Package41-TLGA (5x6)
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Load TypeInductive
