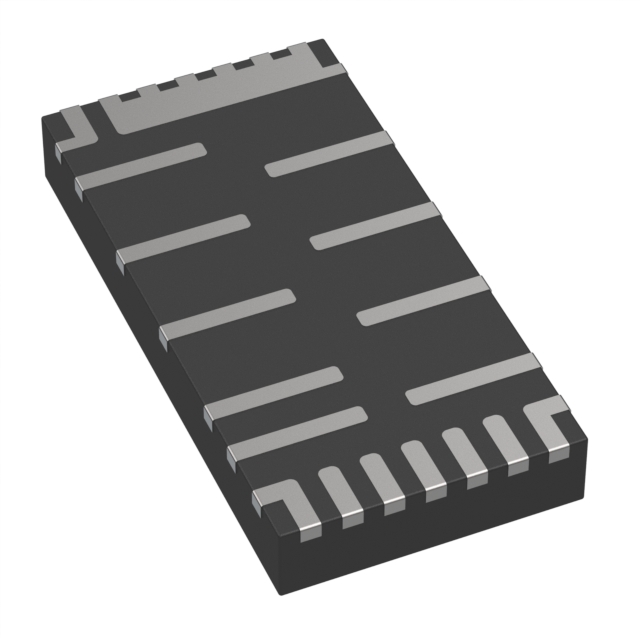

MP86936GRJT-Z
IC HALF BRIDGE DRIVER 60A 23TQFNManufacturer: Monolithic Power Systems Inc.
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver Buck Converters Power MOSFET 23-TQFN (3x6)
Additional Information
Series: Intelli-Phase™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Diode Emulation |
| Packaging | Tape & Reel (TR) |
| Package / Case | 23-PowerVFQFN |
| Mounting Type | Surface Mount |
| Interface | Analog, PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 3V ~ 3.6V |
| Rds On (Typ) | - |
| Applications | Buck Converters |
| Current - Output / Channel | 60A |
| Current - Peak Output | 95A |
| Technology | Power MOSFET |
| Voltage - Load | 3V ~ 16V |
| Supplier Device Package | 23-TQFN (3x6) |
| Fault Protection | Current Limiting, ESD, Over Temperature, UVLO |
| Load Type | Inductive |
