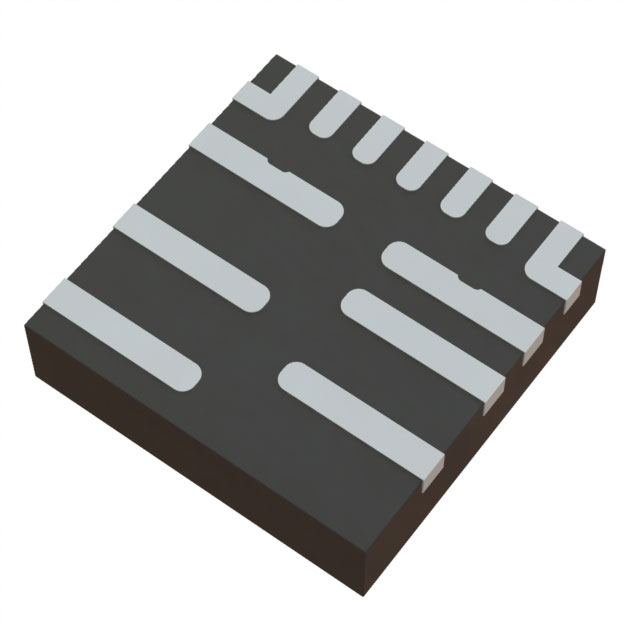

MP86933GQT-Z
IC HALF BRIDGE DRIVER 12A 13TQFNManufacturer: Monolithic Power Systems Inc.
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver General Purpose DrMOS 13-TQFN (3x3)
Additional Information
Series: Intelli-Phase™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Diode Emulation |
| Packaging | Tape & Reel (TR) |
| Package / Case | 13-PowerWFQFN |
| Mounting Type | Surface Mount |
| Interface | Analog, Logic, PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 16V |
| Rds On (Typ) | - |
| Applications | General Purpose |
| Current - Output / Channel | 12A |
| Current - Peak Output | - |
| Technology | DrMOS |
| Voltage - Load | 4.5V ~ 16V |
| Supplier Device Package | 13-TQFN (3x3) |
| Fault Protection | Current Limiting, Over Temperature |
| Load Type | Inductive, Capacitive |
