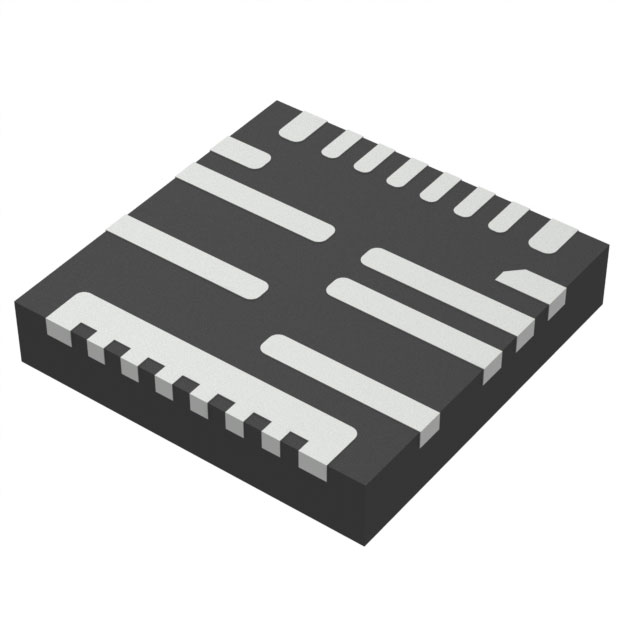

MP86905GR-Z
IC HALF BRIDGE DRIVER 23QFNManufacturer: Monolithic Power Systems Inc.
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver General Purpose Power MOSFET 23-QFN (4x4)
Additional Information
Series: MPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Diode Emulation, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 23-PowerVFQFN |
| Mounting Type | Surface Mount |
| Interface | On/Off, PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 3V ~ 3.6V |
| Rds On (Typ) | - |
| Applications | General Purpose |
| Current - Output / Channel | 50A |
| Current - Peak Output | 90A |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 16V |
| Supplier Device Package | 23-QFN (4x4) |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive, Capacitive, Resistive |
| Grade | - |
| Qualification | - |
Request a Quote
