MP6536DU-LF-P
IC HALF BRIDGE DRIVER 5.5A 40QFNManufacturer: Monolithic Power Systems Inc.
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (3) Driver DC Motors, General Purpose Power MOSFET 40-QFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |

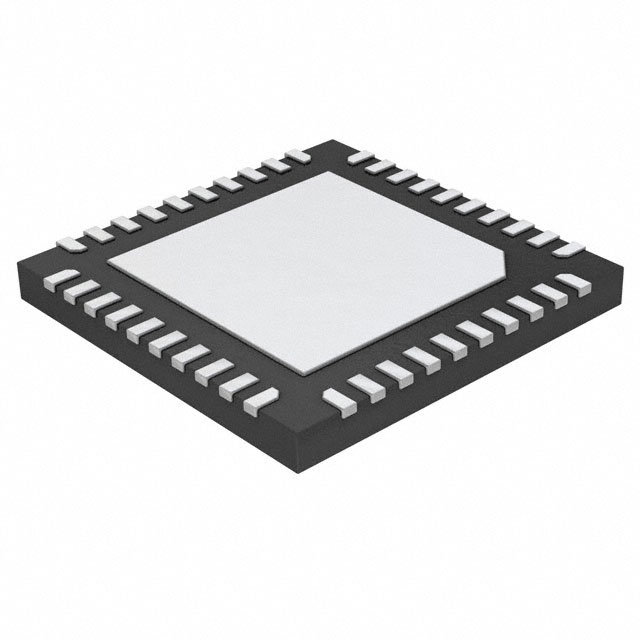

| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic, PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 5V ~ 26V |
| Rds On (Typ) | 140mOhm LS + HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 5.5A |
| Current - Peak Output | 5.5A |
| Technology | Power MOSFET |
| Voltage - Load | 5V ~ 26V |
| Supplier Device Package | 40-QFN (5x5) |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Load Type | Capacitive |
Request a Quote
