MPQ2735GG-AEC1-P
IC SWITCH SPDT X 2 450MOHM 10QFNManufacturer: Monolithic Power Systems Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More

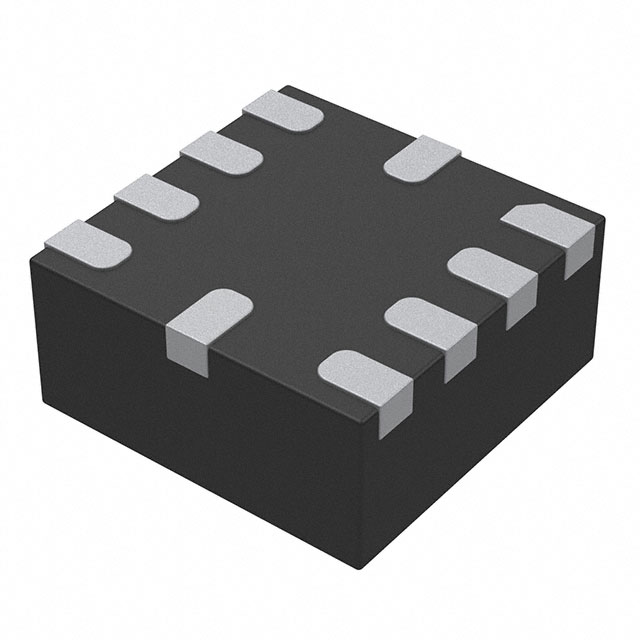

2 Circuit IC Switch 450mOhm 10-QFN (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| On-State Resistance (Max) | 450mOhm |
| -3db Bandwidth | 50MHz |
| Supplier Device Package | 10-QFN (2x2) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -70dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | - |
| Channel-to-Channel Matching (ÃŽ”Ron) | 10mOhm (Typ) |
| Switch Time (Ton, Toff) (Max) | 24ns, 20ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | - |
| Grade | Automotive |
| Number of Circuits | 2 |
| Qualification | AEC-Q100 |
Request a Quote
