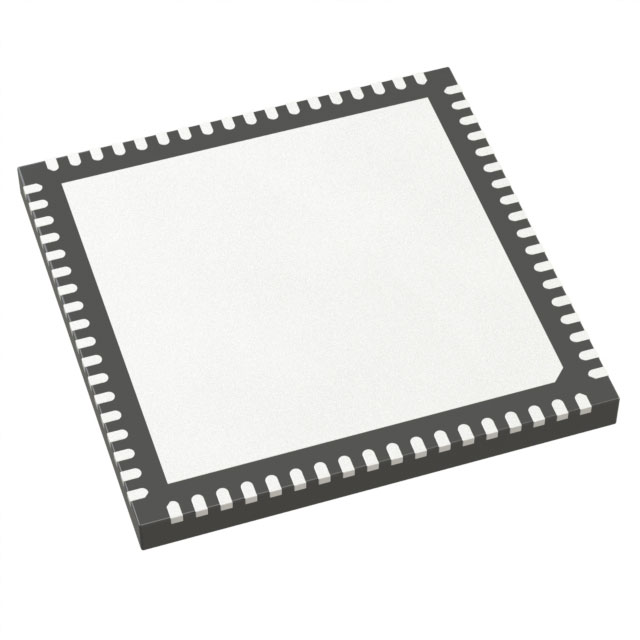

MP4835AGRD-T
IC SWITCH SPST-NOX32 24OHM 72QFNManufacturer: Monolithic Power Systems Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
32 Circuit IC Switch 1:1 24Ohm 72-QFN (10x10)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 72-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 125°C |
| On-State Resistance (Max) | 24Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 72-QFN (10x10) |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 18pC |
| Crosstalk | -60dB @ 5MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1.2Ohm |
| Switch Time (Ton, Toff) (Max) | 2µs, 2µs |
| Channel Capacitance (CS(off), CD(off)) | 10pF |
| Current - Leakage (IS(off)) (Max) | - |
| Number of Circuits | 32 |
Request a Quote
