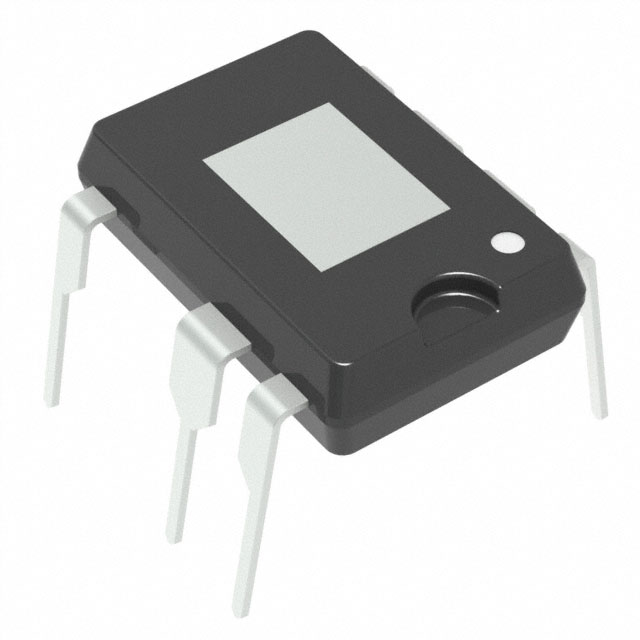

MP110GPR
IC OFFLINE SWITCH FLYBACK 8DIPManufacturer: Monolithic Power Systems Inc.
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology Up to 300kHz 8-PDIP-7EP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads, Exposed Pad |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Duty Cycle | - |
| Frequency - Switching | Up to 300kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 900V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 20V |
| Supplier Device Package | 8-PDIP-7EP |
| Fault Protection | Over Load, Over Temperature, Over Voltage, Short Circuit |
| Voltage - Start Up | 11.7 V |
| Control Features | Frequency Control |
