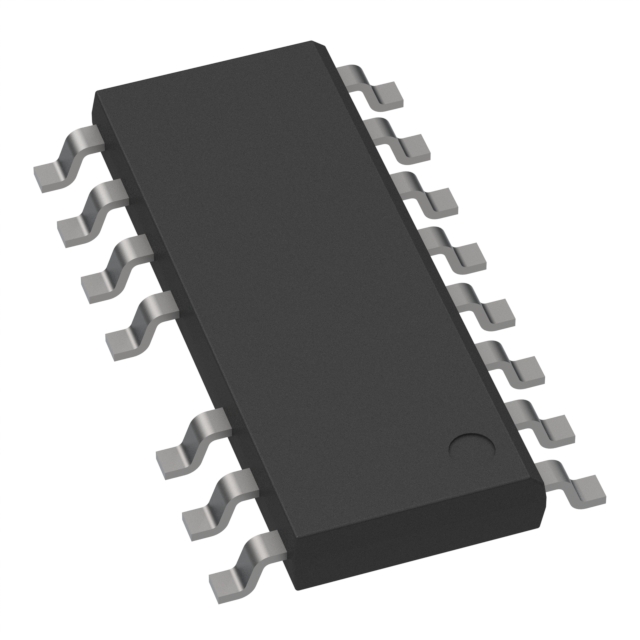

HR1002AGSE-Z
IC OFFLINE SWITCHManufacturer: Monolithic Power Systems Inc.
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 600kHz 16-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width), 15 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Duty Cycle | 50% |
| Frequency - Switching | 600kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 13V ~ 15.5V |
| Supplier Device Package | 16-SOIC |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit |
| Control Features | Frequency Control, Soft Start |
| Power (Watts) | 1.56 W |
