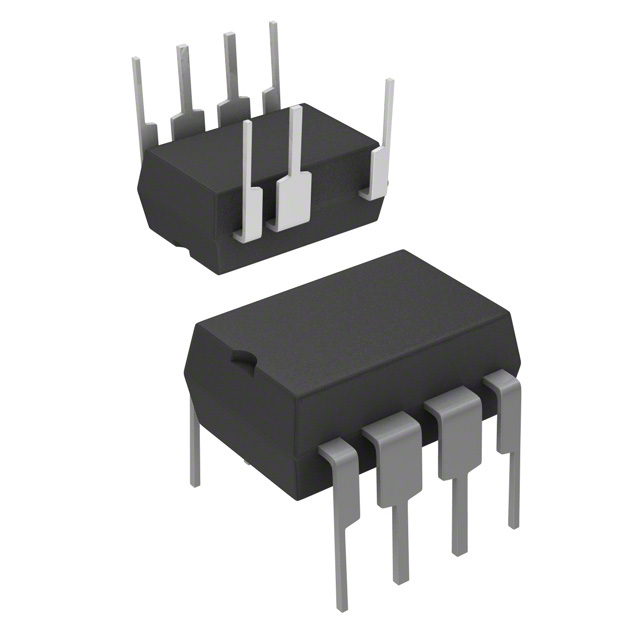

HF01B01DP-LF
IC OFFLINE SWITCH FLYBACK 8DIPManufacturer: Monolithic Power Systems Inc.
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology Up to 150kHz 8-PDIP-7B
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | - |
| Frequency - Switching | Up to 150kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V |
| Supplier Device Package | 8-PDIP-7B |
| Fault Protection | Over Load, Over Temperature, Over Voltage |
| Voltage - Start Up | 11.8 V |
| Control Features | - |
| Power (Watts) | 45 W |
