5002541931
CONN RCPT HDMI 19POS SMD R/AManufacturer: Molex
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

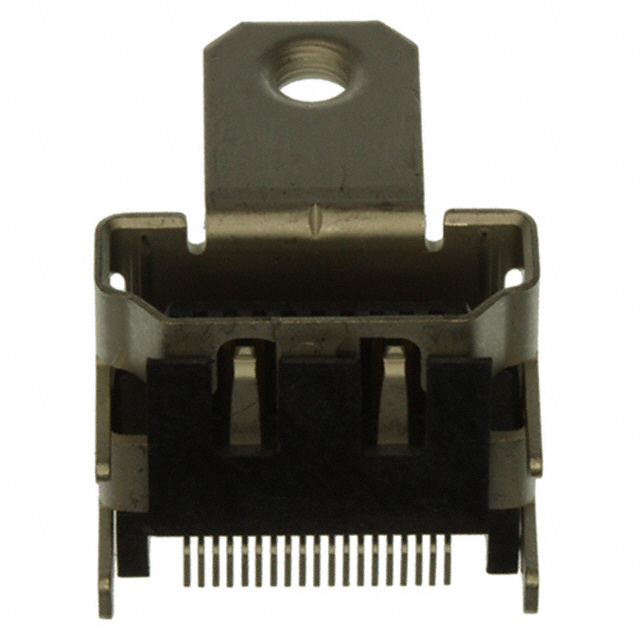

Molex 500254 series HDMI receptacle connector, part number 5002541931. This 19-position, shielded connector offers a right-angle, surface-mount and through-hole mounting configuration with a flange for horizontal placement. Designed for robust signal integrity, it features a 0.5A current rating and a 40VAC/DC voltage rating. The solder termination ensures a secure connection. This component is widely utilized in consumer electronics, automotive infotainment, and industrial display systems where high-definition video and audio transmission is critical. The connector is supplied in trays.
Additional Information
Series: 500254RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Voltage - Rated | 40VAC/DC |
| Number of Contacts | 19 |
| Connector Type | HDMI |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Shielding | Shielded |
| Operating Temperature | -20°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Flange, Horizontal |
| Number of Ports | 1 |
