2178040001

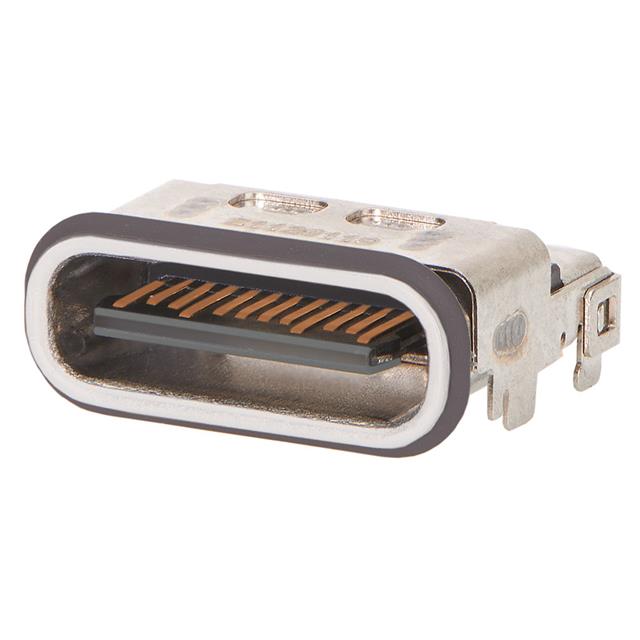

USB C RECEPTACLE, 24PINManufacturer: Molex
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Additional Information
Series: 217804RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Cut Tape (CT) |
| Voltage - Rated | 30VDC |
| Number of Contacts | 24 |
| Connector Type | USB-C (USB TYPE-C) |
| Gender | Receptacle |
| Current Rating (Amps) | 0.25A, 1.25A, 5A |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 85°C |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Ingress Protection | IPX8 - Waterproof |
| Mounting Feature | Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
