1054431101
CONN RCPT USB2.0 MICRO B SMD R/AManufacturer: Molex
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

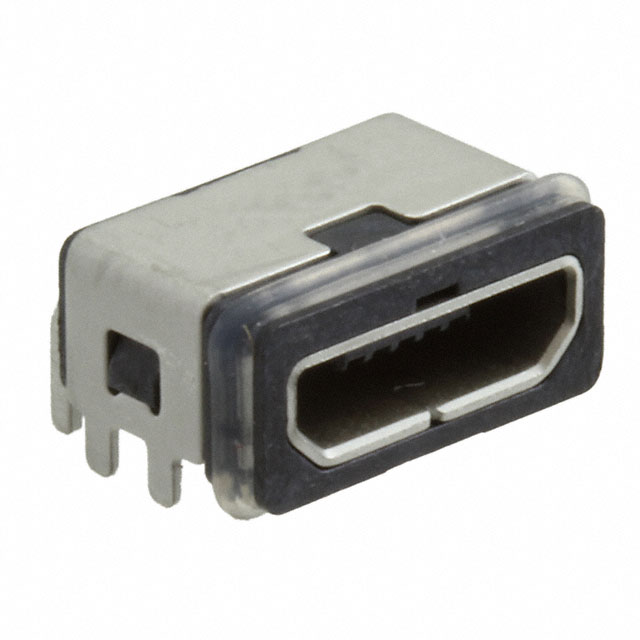

Molex 1054431101 is a USB 2.0 micro-B receptacle connector from the 105443 series. This component is designed for surface mount, right-angle, through-hole termination and features a shielded, 5-position configuration. It supports a current rating of 1A and 1.8A and a voltage rating of 30VAC. The connector offers IP67 ingress protection, ensuring dust-tight and waterproof operation, and boasts a mating cycle of 10,000. Its horizontal mounting feature and pick-and-place compatibility make it suitable for automated assembly processes. This connector is commonly utilized in consumer electronics, automotive, and industrial applications requiring robust and reliable USB connectivity. Packaged on tape and reel for efficient manufacturing.
Additional Information
Series: 105443RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Pick and Place |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 30VAC |
| Number of Contacts | 5 |
| Connector Type | USB - micro B |
| Gender | Receptacle |
| Current Rating (Amps) | 1A, 1.8A |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Shielding | Shielded |
| Operating Temperature | -35°C ~ 85°C |
| Specifications | USB 2.0 |
| Termination | Solder |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
