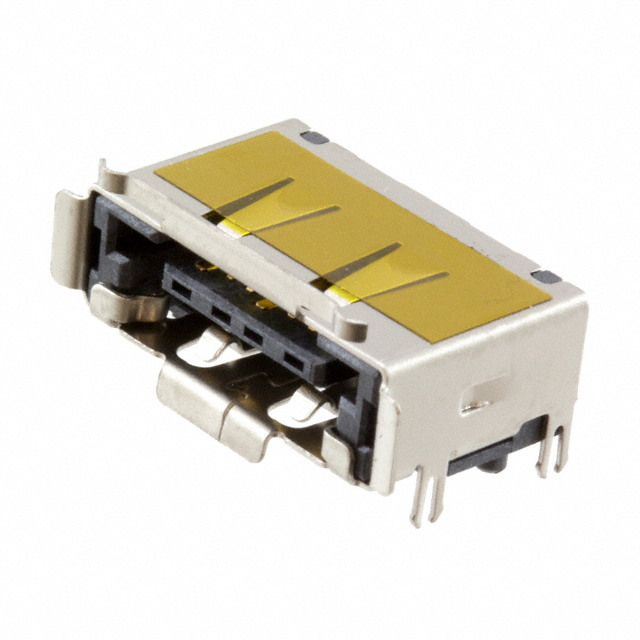

1051251001
CONN RCPT USB A/ESATA COMBO R/AManufacturer: Molex
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
Molex 1051251001 is a shielded, right-angle, through-hole receptacle connector from the 105125 series. This combo connector integrates USB Type-A and eSATA interfaces, offering 11 contacts (4 for USB, 7 for eSATA) within a single component. Designed for high-volume manufacturing, it is supplied on tape and reel. Each contact supports a current rating of 1.5A with a voltage rating of 15VDC. The connector features a board lock for enhanced mechanical stability and is rated for 1500 mating cycles. Operating within a temperature range of -35°C to 85°C, this solution is suitable for applications in consumer electronics and data storage.
Additional Information
Series: 105125RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 15VDC |
| Number of Contacts | 11 (4+7) |
| Connector Type | USB-A (USB TYPE-A) and eSATA, Combo |
| Gender | Receptacle |
| Current Rating (Amps) | 1.5A per Contact |
| Mounting Type | Through Hole, Right Angle |
| Shielding | Shielded |
| Operating Temperature | -35°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 1500 |
| Number of Ports | 1 |
