1050200001
CONN RCPT DISPLAYPORT 20POS R/AManufacturer: Molex
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

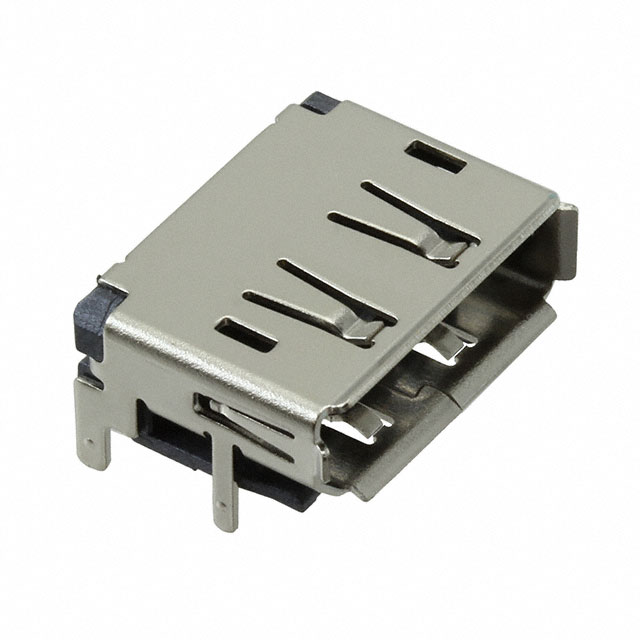

Molex 1050200001 is a shielded DisplayPort receptacle connector from the 105020 series. This right-angle, through-hole component features 20 positions and a single port, designed for 0.5A current rating and 40VAC voltage rating. It offers a mating cycle of 10,000 and operates within a temperature range of -20°C to 85°C. The connector is supplied on tape and reel for efficient assembly. This component is commonly utilized in display interfaces for consumer electronics and professional audio-visual equipment.
Additional Information
Series: 105020RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 40VAC |
| Number of Contacts | 20 |
| Connector Type | DisplayPort |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Through Hole, Right Angle |
| Shielding | Shielded |
| Operating Temperature | -20°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
