768501038
CONN RCPT IMPACT 96POS EDGE MNTManufacturer: Molex
Categories: Specialized
Quality Control: Learn More

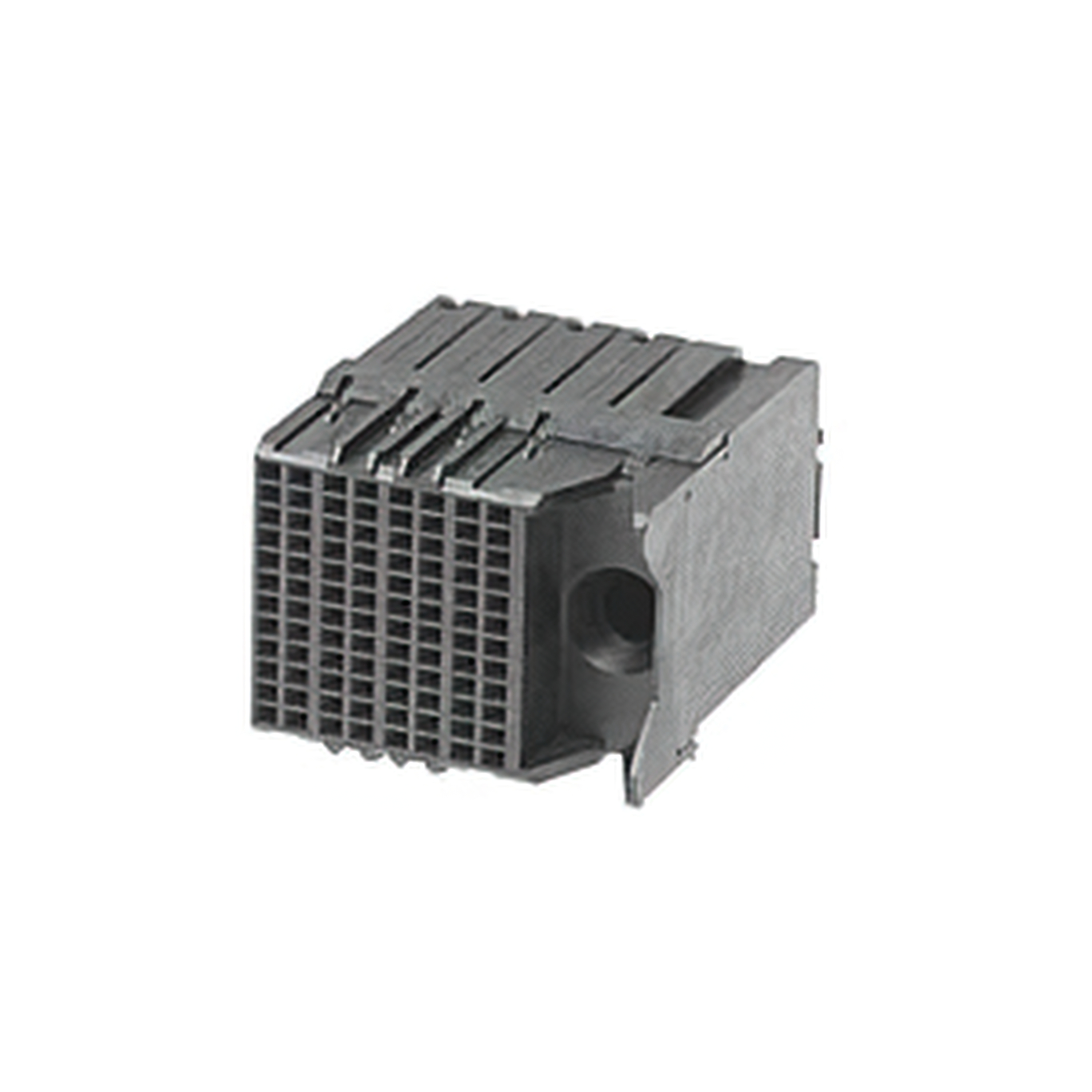

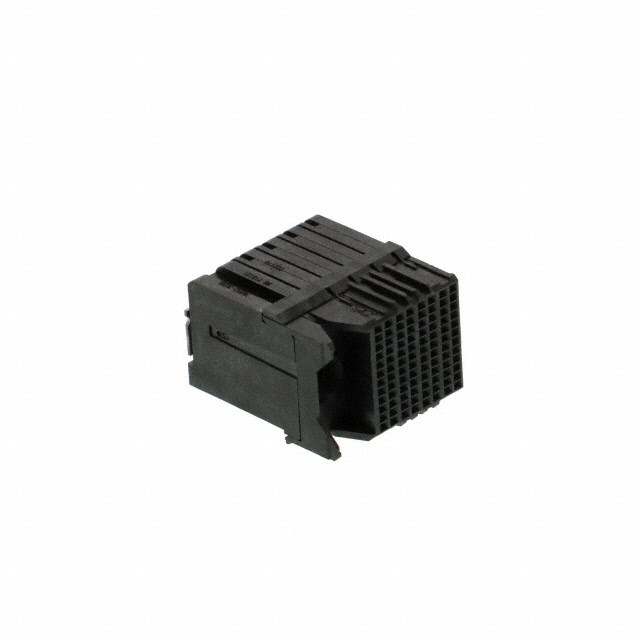

96 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black Impact
Additional Information
Series: Impact 76850RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | 0.053"" (1.35mm) |
| Number of Rows | 12 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Impact |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 32 Differential Pairs |
| Number of Columns | 8 |
