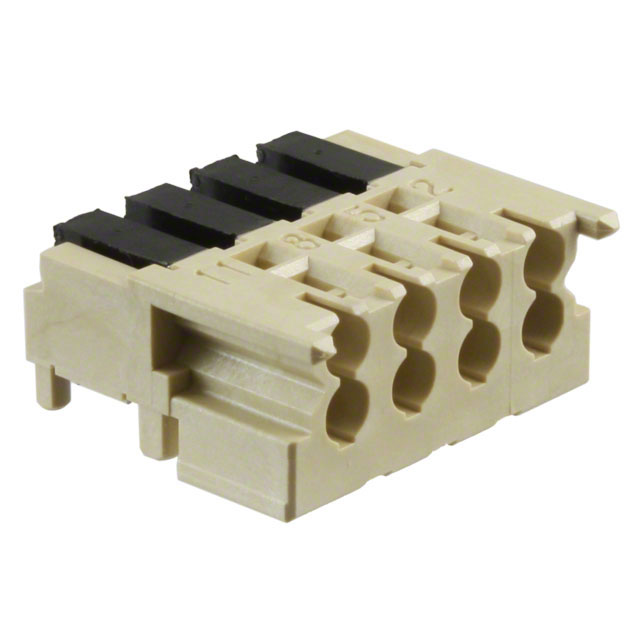

746420001
CONN RCPT COAX 8POS EDGE MNTManufacturer: Molex
Categories: Specialized
Quality Control: Learn More
8 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural Coax
Additional Information
Series: 74642RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 8 |
| Pitch | 0.246"" (6.25mm) |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Coax |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 8 Coax |
| Number of Columns | 4 |
Request a Quote
