791077013
CONN RCPT 28POS 0.079 GOLD PCBManufacturer: Molex
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More

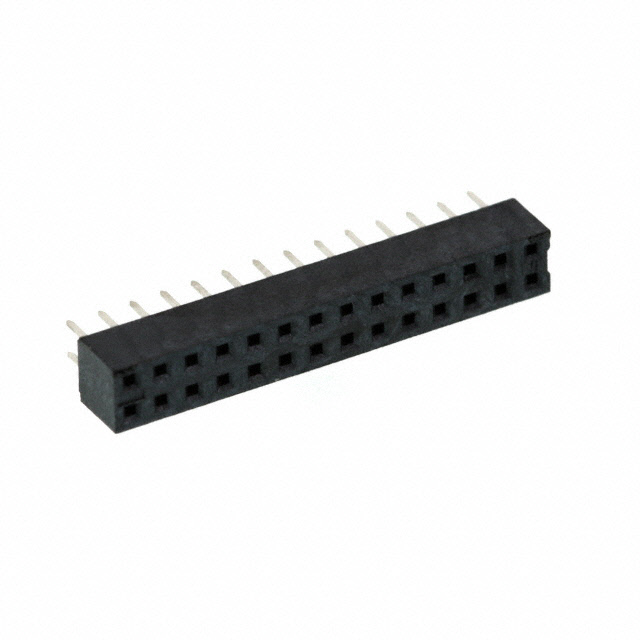

28 Position Receptacle Connector 0.079"" (2.00mm) Through Hole Gold
Additional Information
Series: Milli-Grid 79107RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle |
| Voltage Rating | 125V |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118"" (3.00mm) |
| Insulation Height | 0.175"" (4.45mm) |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Number of Rows | 2 |
