447691601
CONN RCPT 16POS 0.118 TIN PCBManufacturer: Molex
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More

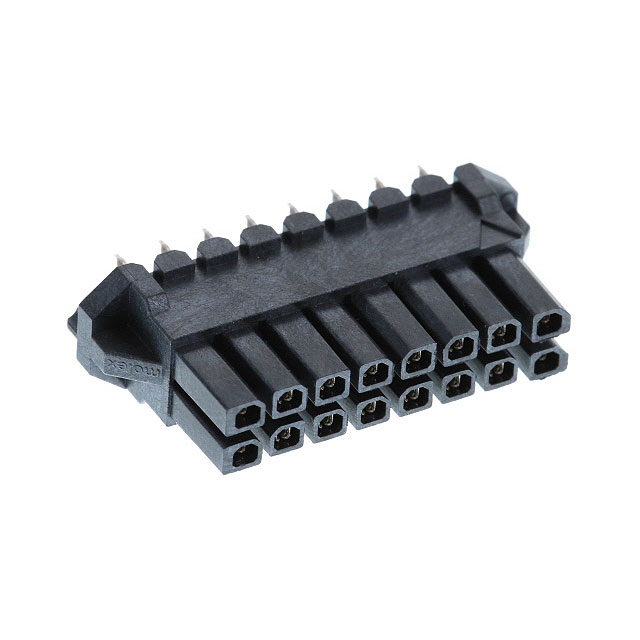

16 Position Receptacle Connector 0.118"" (3.00mm) Through Hole Tin
Additional Information
Series: Micro-Fit 3.0 BMI 44769RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Blind Mating, Board Guide |
| Packaging | Tray |
| Connector Type | Receptacle |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | 5A |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Style | Board to Board or Cable |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 16.86mm |
| Insulation Color | Black |
| Pitch - Mating | 0.118"" (3.00mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.134"" (3.40mm) |
| Insulation Height | 0.535"" (13.60mm) |
| Row Spacing - Mating | 0.118"" (3.00mm) |
| Number of Rows | 2 |
