877590850
CONN HEADER SMD 8POS 2MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 8 position 0.079"" (2.00mm)
Additional Information
Series: Milli-Grid 87759RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Breakaway |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.059"" (1.50mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Contact Length - Mating | 0.150"" (3.81mm) |
Request a Quote
Clients Also Buy

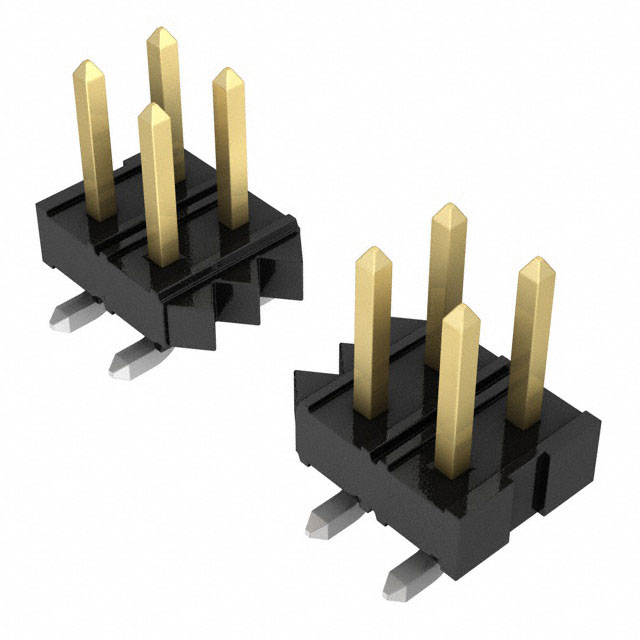

877591015
