705550037

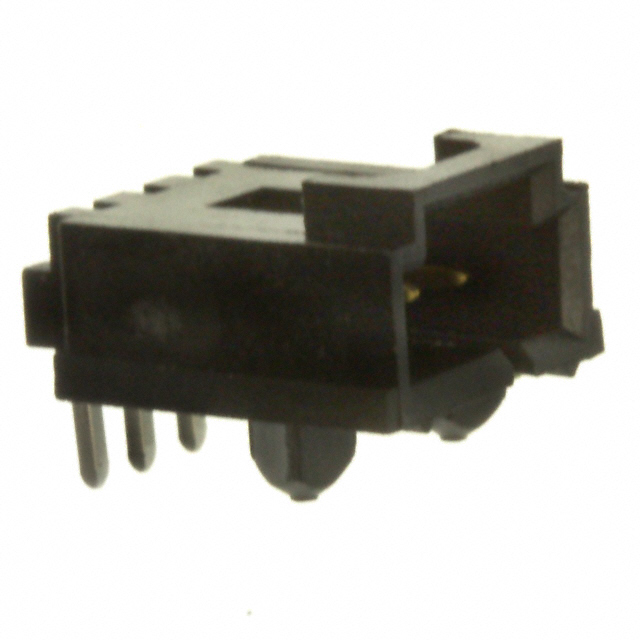

CONN HEADER R/A 3POS 2.54MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 3 position 0.100"" (2.54mm)
Additional Information
Series: SL 70555RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.130"" (3.30mm) |
| Insulation Height | 0.215"" (5.45mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyester, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.240"" (6.10mm) |
Request a Quote
Clients Also Buy

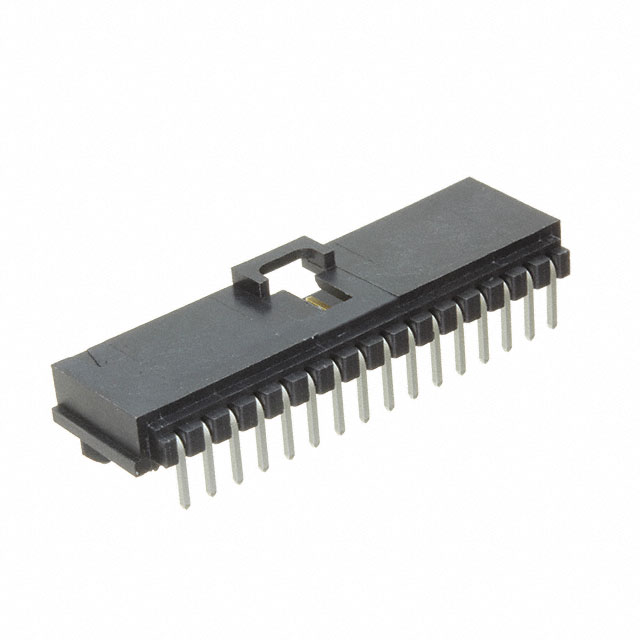

705550050
