554600772

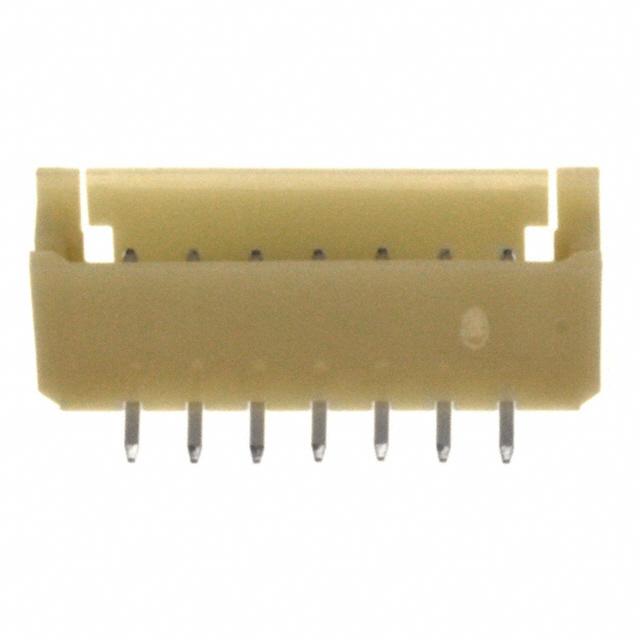

CONN HEADER SMD 7POS 2MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 7 position 0.079"" (2.00mm)
Additional Information
Series: Mi II 55460RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Natural |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.276"" (7.00mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
