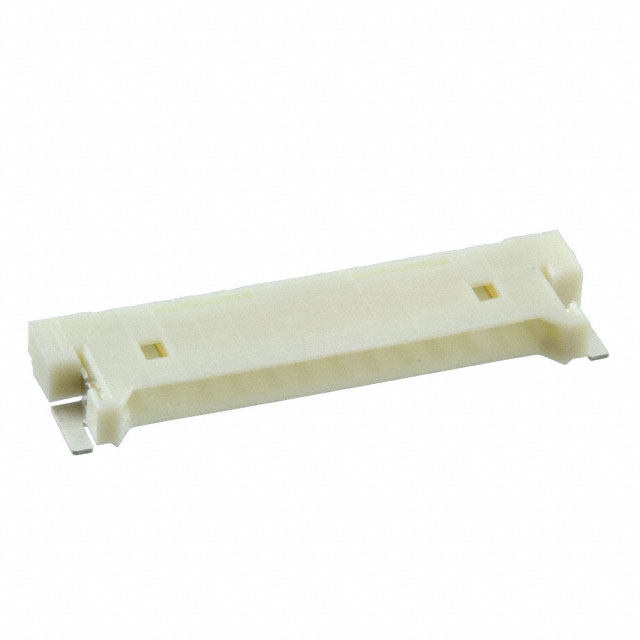

CONN HEADER SMD R/A 12POS 1.25MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount, Right Angle 12 position 0.049"" (1.25mm)
Additional Information
Series: PanelMate 53780RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 125V |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Natural |
| Pitch - Mating | 0.049"" (1.25mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.073"" (1.85mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.102"" (2.60mm) |
