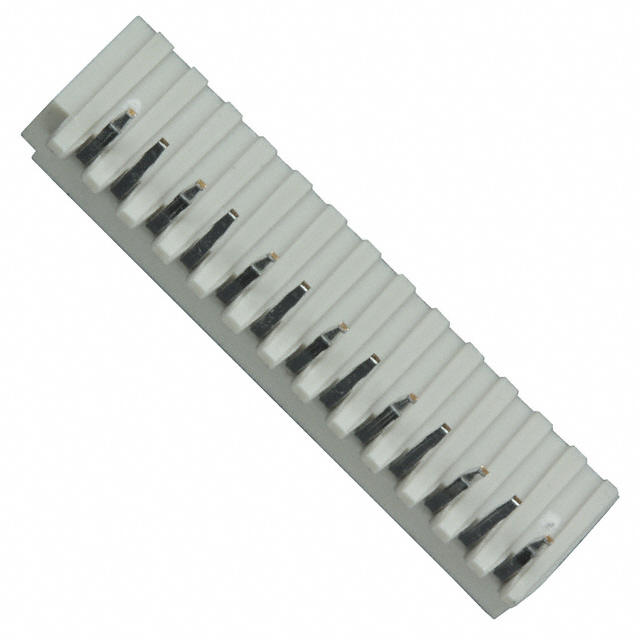

530151310
CONN HEADER R/A 13POS 2MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 13 position 0.079"" (2.00mm)
Additional Information
Series: MicroBlade 53015RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 13 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Male Blade |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Press-Fit, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | White |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 35.4µin (0.90µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.138"" (3.50mm) |
| Insulation Height | 0.183"" (4.65mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.122"" (3.10mm) |
