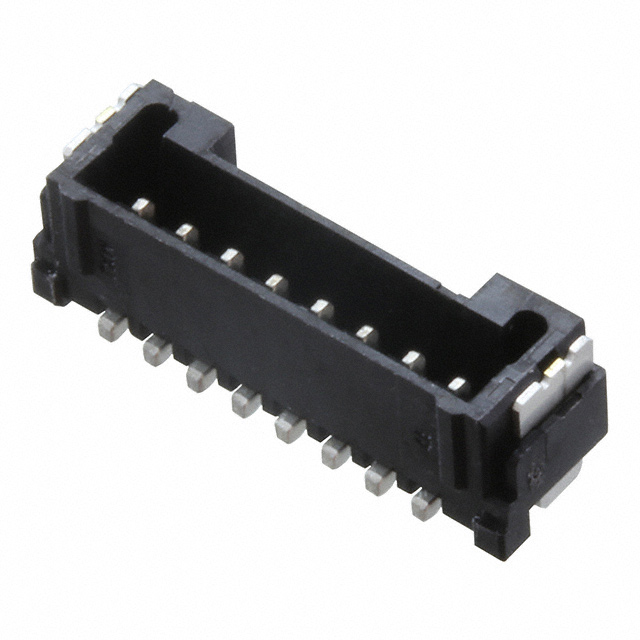

5055680871
CONN HEADER SMD 8POS 1.25MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 8 position 0.049"" (1.25mm)
Additional Information
Series: Micro-Lock PLUS 505568RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 50VAC/DC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.049"" (1.25mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.165"" (4.20mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
Request a Quote
