CMC 28W R/A HEADER CODING GREYManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More

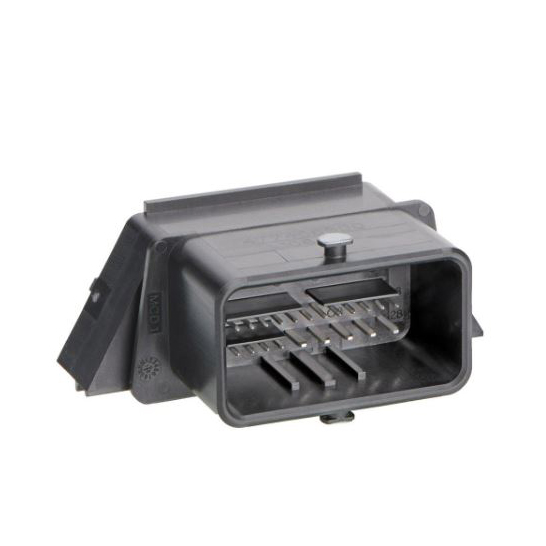

Connector Header Board Edge, Through Hole, Right Angle 28 position
Additional Information
Series: CMC 47745RoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 14VDC |
| Current Rating (Amps) | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 28 |
| Number of Rows | 4 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 HB |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Circular, Rectangular |
| Contact Length - Post | 0.114"" (2.90mm) |
| Insulation Height | 1.102"" (28.00mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
