444322001
CONN HEADER VERT 20POS 3MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 20 position 0.118"" (3.00mm)
Additional Information
Series: Micro-Fit 3.0 BMI 44432RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Blind Mating, Board Guide |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Press-Fit, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.118"" (3.00mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.130"" (3.30mm) |
| Insulation Height | 0.457"" (11.60mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Row Spacing - Mating | 0.118"" (3.00mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy

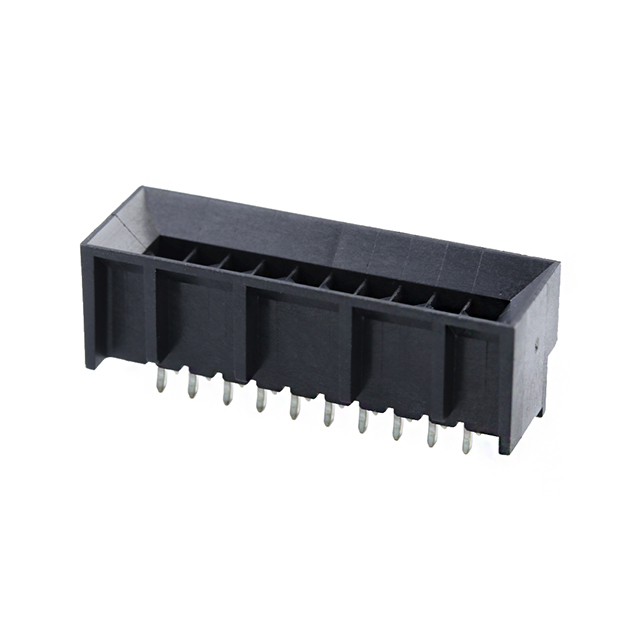

444322003
