440680107

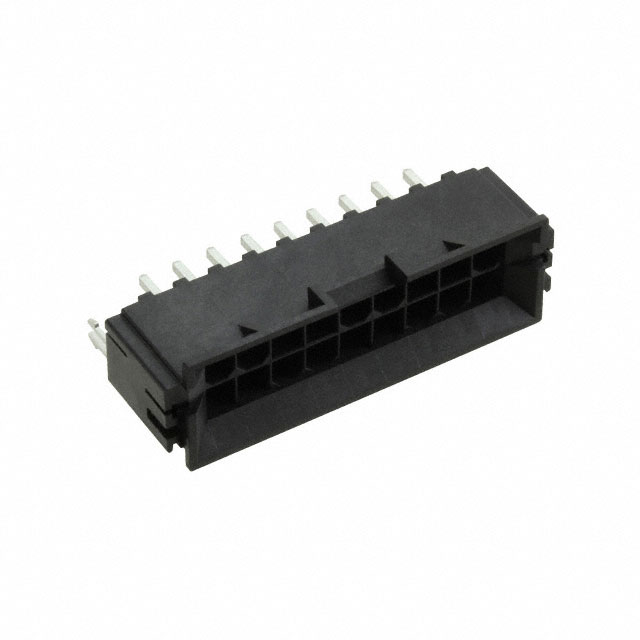

CONN HEADER VERT 18POS 4.2MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 18 position 0.165"" (4.20mm)
Additional Information
Series: Mini-Fit BMI SMC 44068RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Blind Mating, Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.165"" (4.20mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.193"" (4.90mm) |
| Insulation Height | 0.587"" (14.91mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Row Spacing - Mating | 0.165"" (4.20mm) |
| Contact Length - Mating | - |
