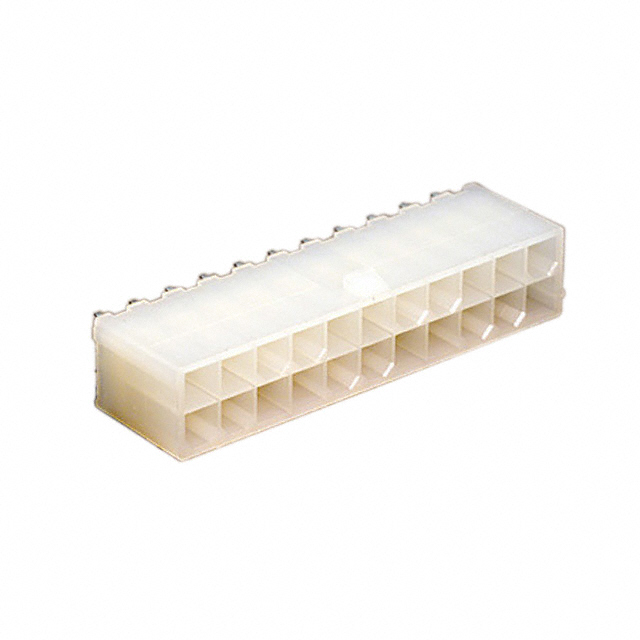

CONN HEADER VERT 22POS 4.2MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 22 position 0.165"" (4.20mm)
Additional Information
Series: Mini-Fit Jr 5566RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Natural |
| Pitch - Mating | 0.165"" (4.20mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.138"" (3.50mm) |
| Insulation Height | 0.504"" (12.80mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Row Spacing - Mating | 0.165"" (4.20mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy
39281023
CONN HEADER VERT 2POS
39289088

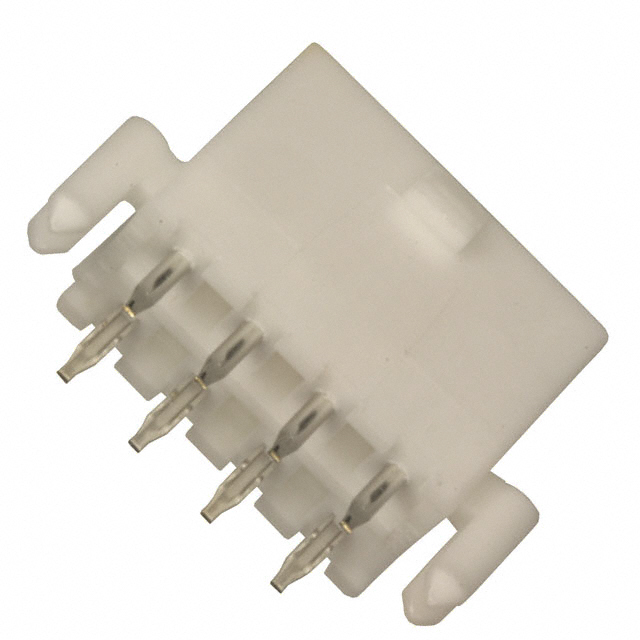

CONN HEADER VERT 8POS 4.2MM
