349610345

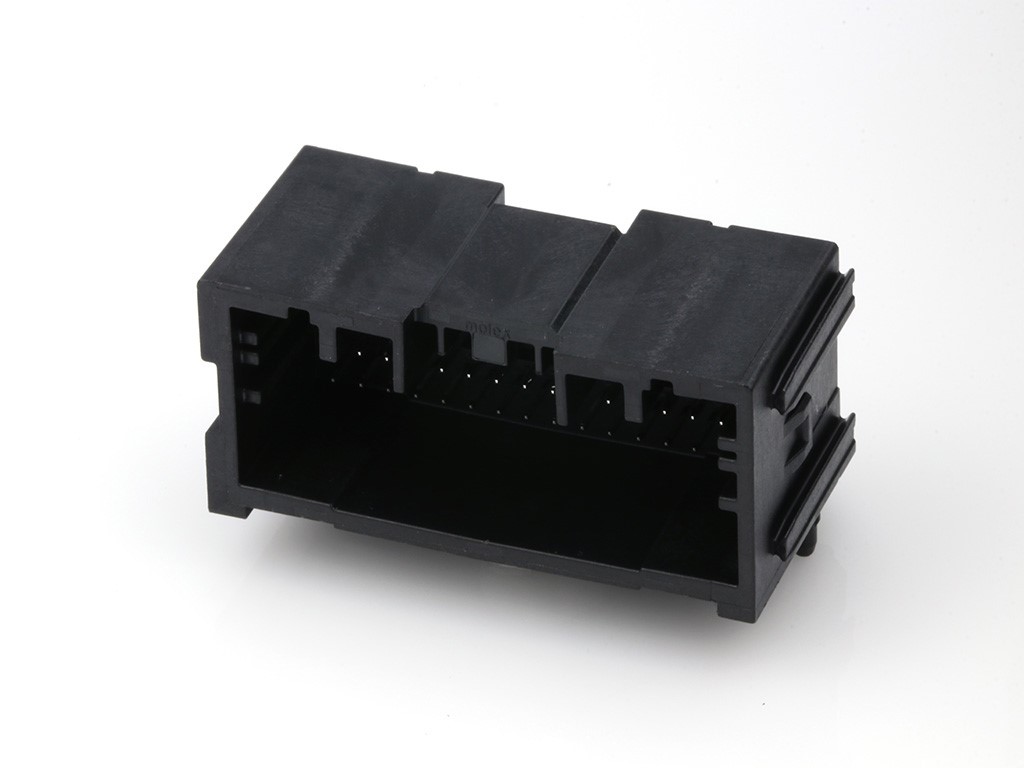

CONN HEADER R/A 34POSManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 34 position 0.079"" (2.00mm)
Additional Information
Series: Mini50 34961RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Header, Breakaway |
| Voltage Rating | 14VDC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 34 |
| Number of Rows | 3 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Blade; Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 HB |
| Contact Material | Brass |
| Insulation Color | Gray |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular, Square |
| Contact Length - Post | 0.108"" (2.75mm) |
| Insulation Height | 0.654"" (16.61mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.215"" (5.45mm) |
